Description

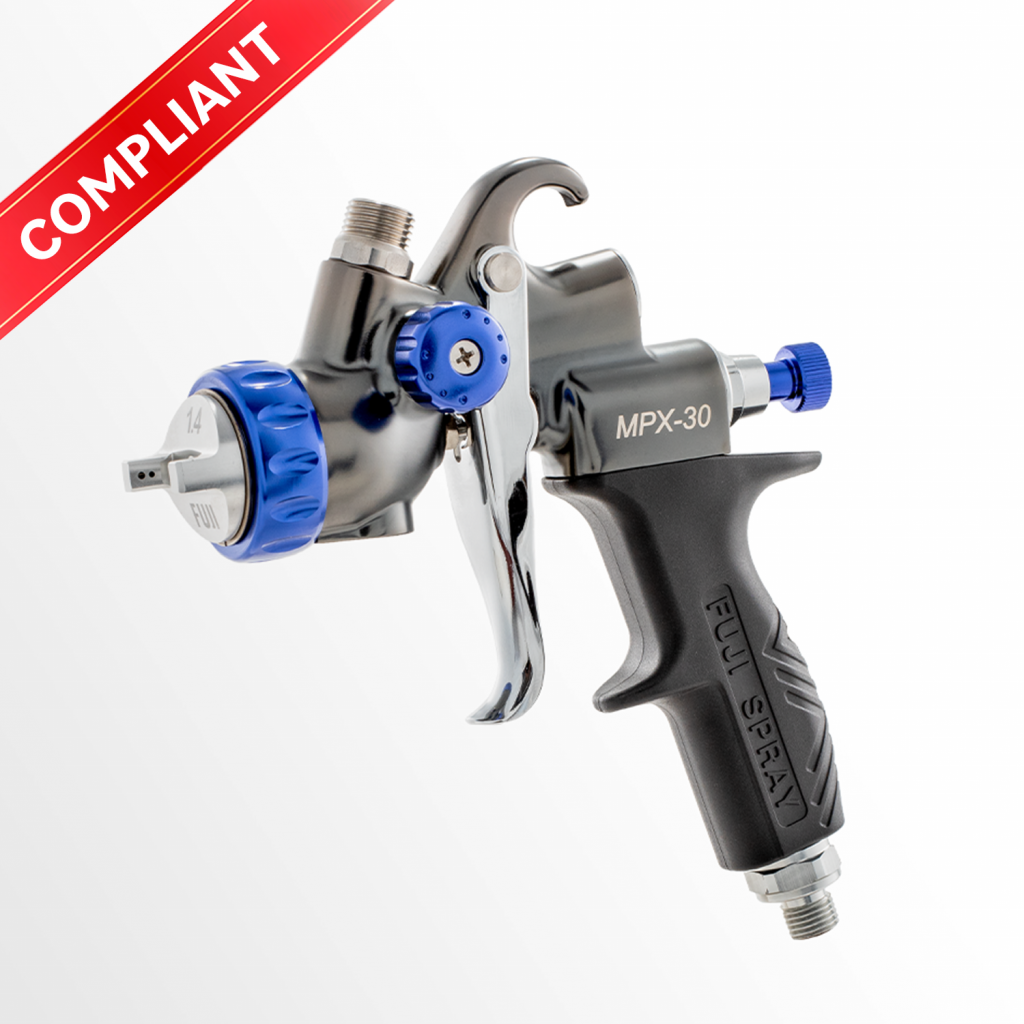

With a handle ergonomically designed to reduce user fatigue, the MPX-30™ provides increased application speed without sacrificing performance. Intuitive, lightweight and easy to maintain, its nearly 13” wide fan pattern, paired with a precise side-mounted fan pattern control, minimizes overspray and reduces waste. The MPX-30™ features optimized internal air passages to provide increased atomizing air for modern high-solid coatings.
Key Features:
- Fuji Spray® Mid-Pressure Technology combines rapid application and higher transfer efficiency
- 100% stainless steel fluid passages suitable for water-borne and solvent-based coatings
- Enhanced air cap design results in a soft spray pattern and outstanding atomization of high solid coatings
- Gravity feed compressor spray gun is installed with 1.4mm
- Precise side-mounted fan pattern control
- Recommended 13.8cfm at 36 psi
- Ergonomic design for increased comfort and reduced fatigue
- Compliant Spray Gun — South Coast Air Quality Management District (SCAQMD) certified
Specifications:
| Recommended 13.8 cfm at 36 psi | |
| Air Cap Sets Available (in mm): | 1.0; 1.3; 1.4; 1.7; 2.0 |
| Air Supply Pressure: | 36 psi at gun inlet (2.5 bar) |
| Air Consumption: | 13.8 cfm |
| Air Inlet Size: | 1/4“ BSP and NPS |
| Air Supply Hose Width: | 5/16” ID |
| Fluid Coupler (Gravity): | M 16 x 1.5P |
| Standard Air Cap Set (Gravity): | 1.4 mm |
| Gun Weight (Without Cup): | 502 g (17.70 oz) |
| Application Type: | Waterborne and solvent-borne high-solid clear coat |
| Max. Fan Width: | 320 mm |
