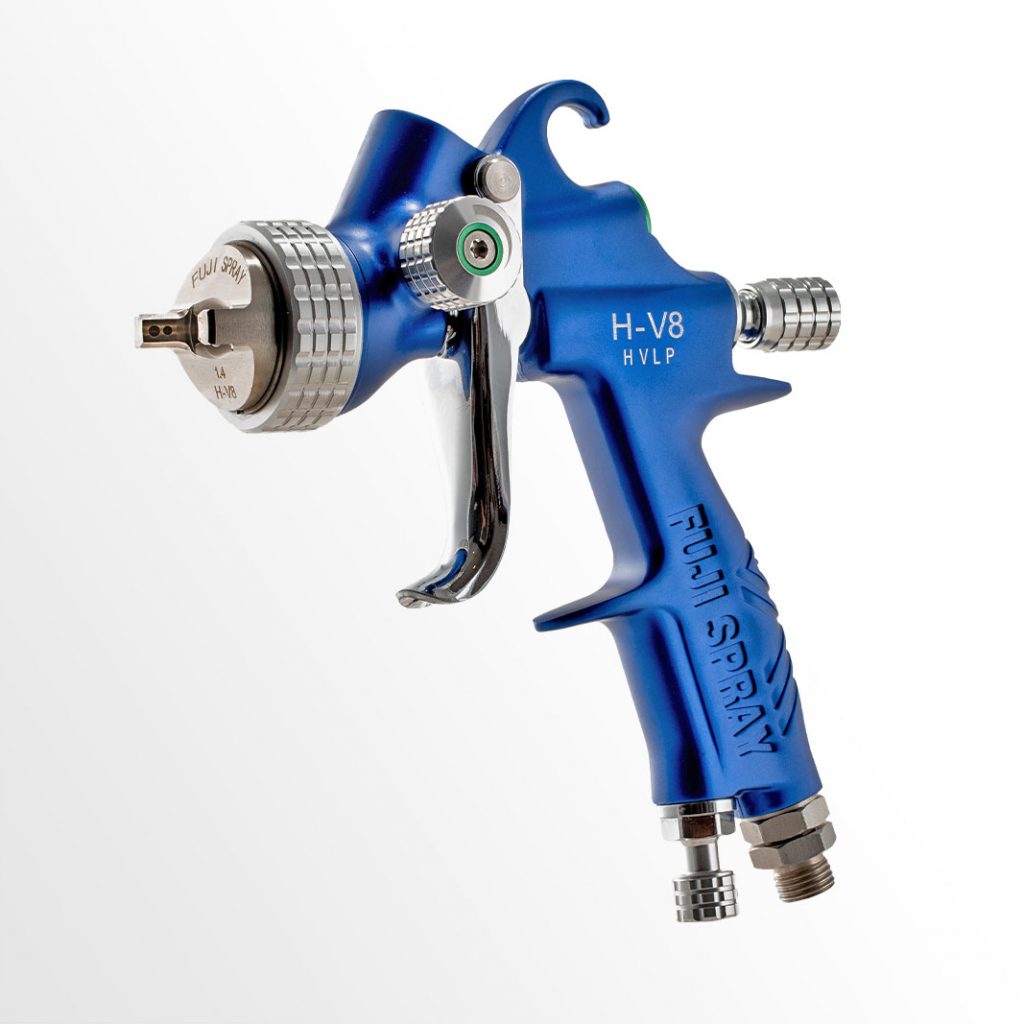

H-V8™ HVLP Spray Gun

USD $449.00

Frequently Bought Together

V8™ Series Rebuild Kit

What's Included

Air Distributor, Spindle Valve Bushing, Spindle Valve, Spindle Valve Spring, Fluid Screw Nut, Needle Spring, Needle Spring Cap, Fluid Control Knob and Needle Packing Assembly

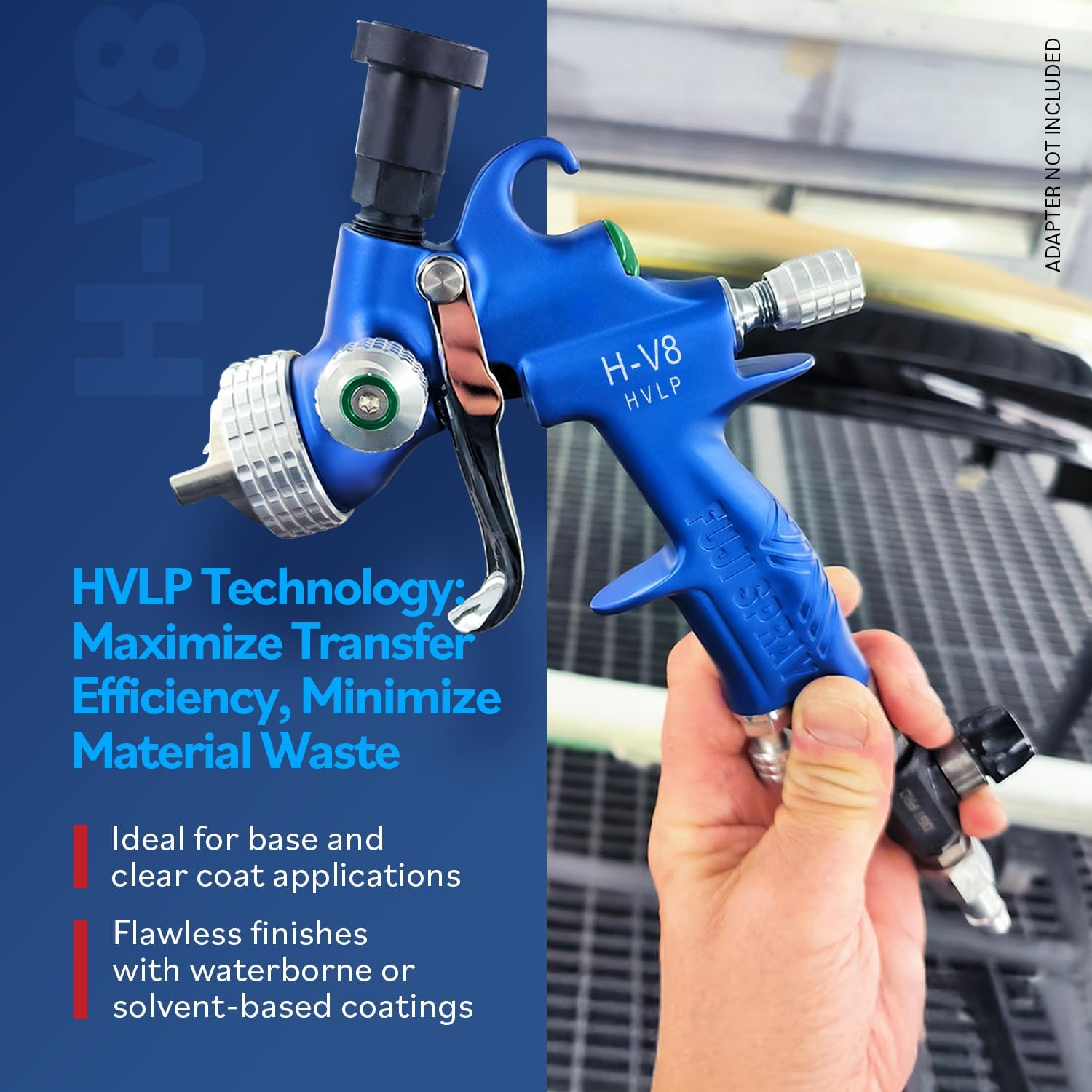

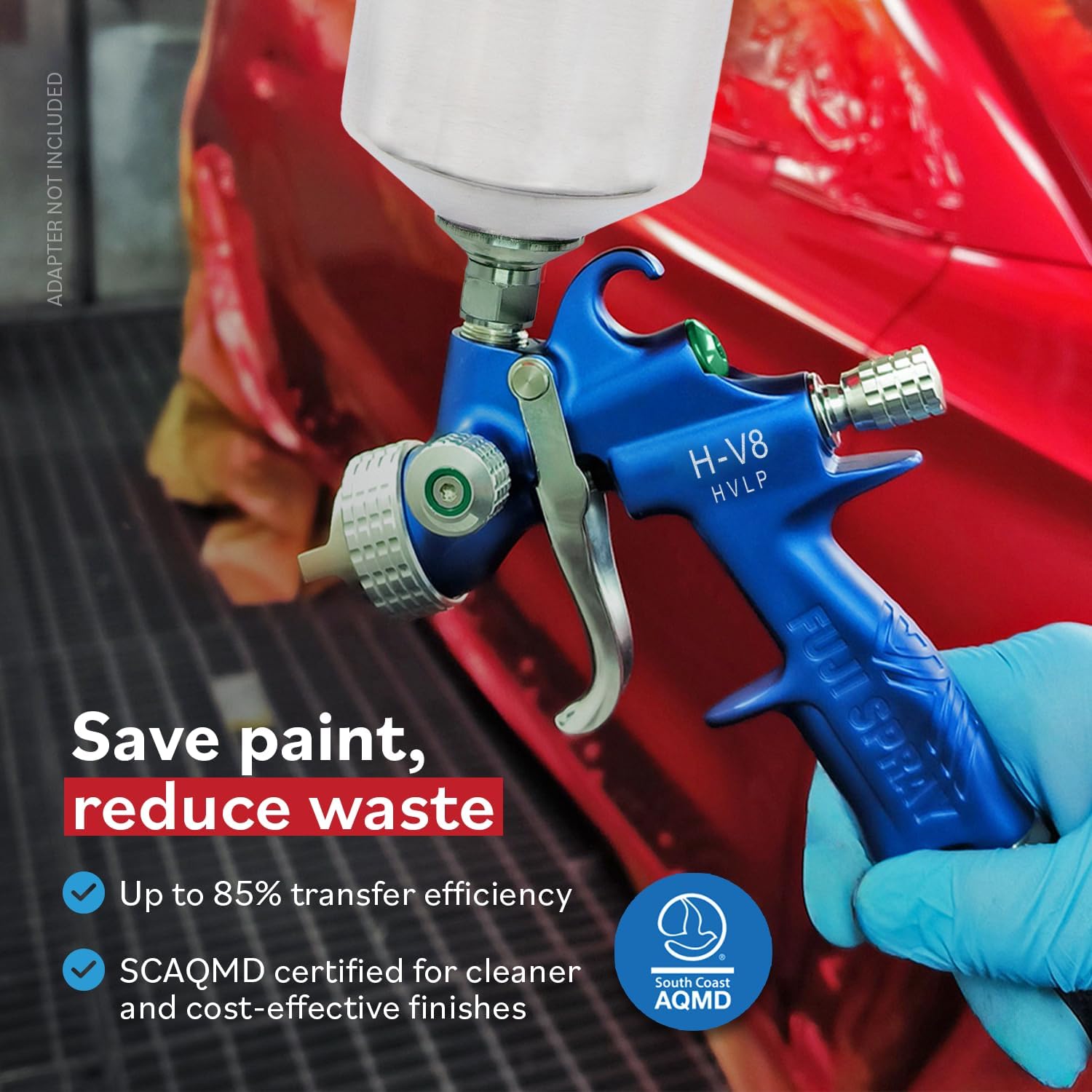

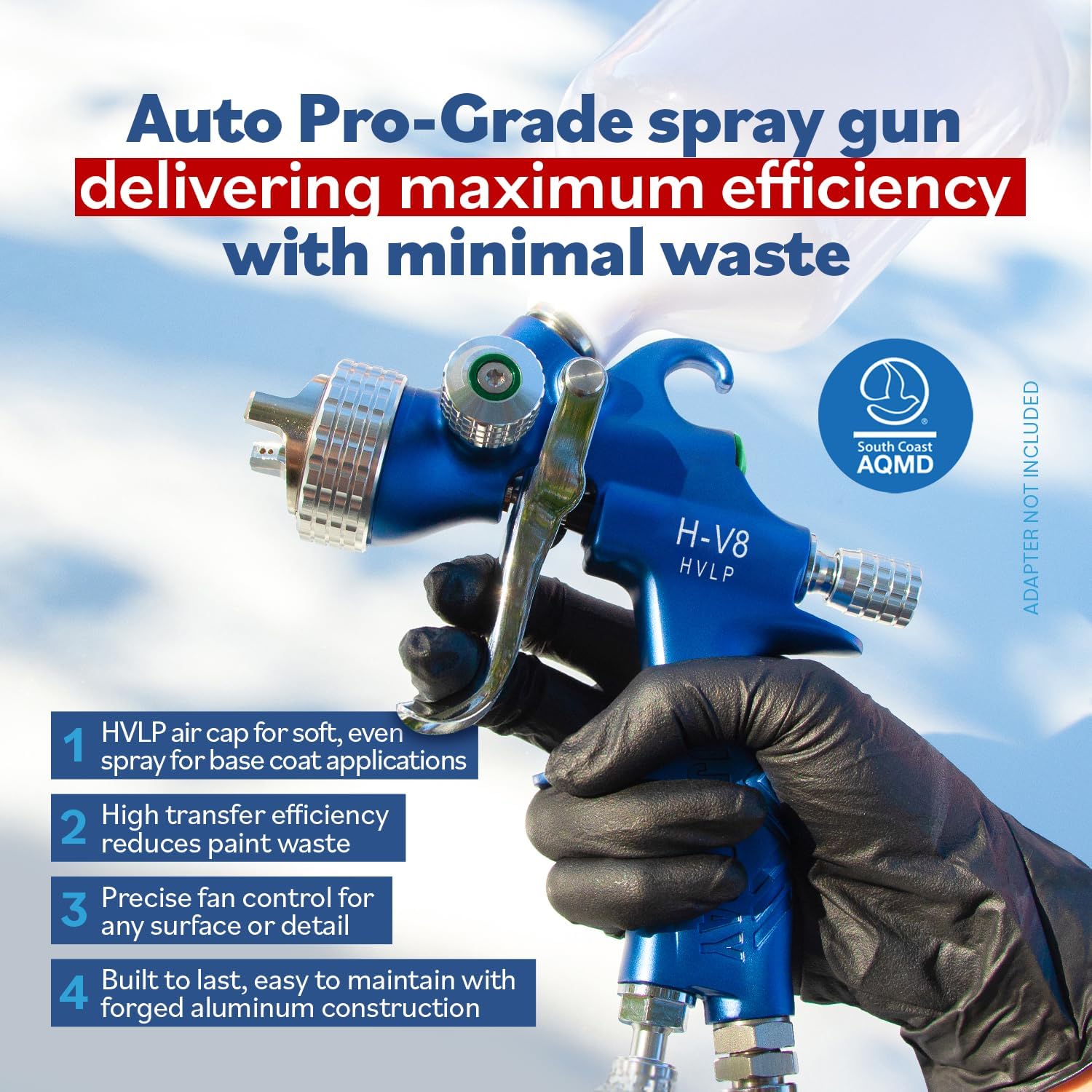

Best suited for base and clear coat applications, the H-V8™ features a precise side-mounted fan pattern control and 360° swivel air inlet providing you with a convenient spray experience with every use. The H-V8™ has few internal components, forged aluminum spray gun body with anodized fluid passages, and an optimized HVLP air cap resulting in a soft spray pattern.

Key Features:

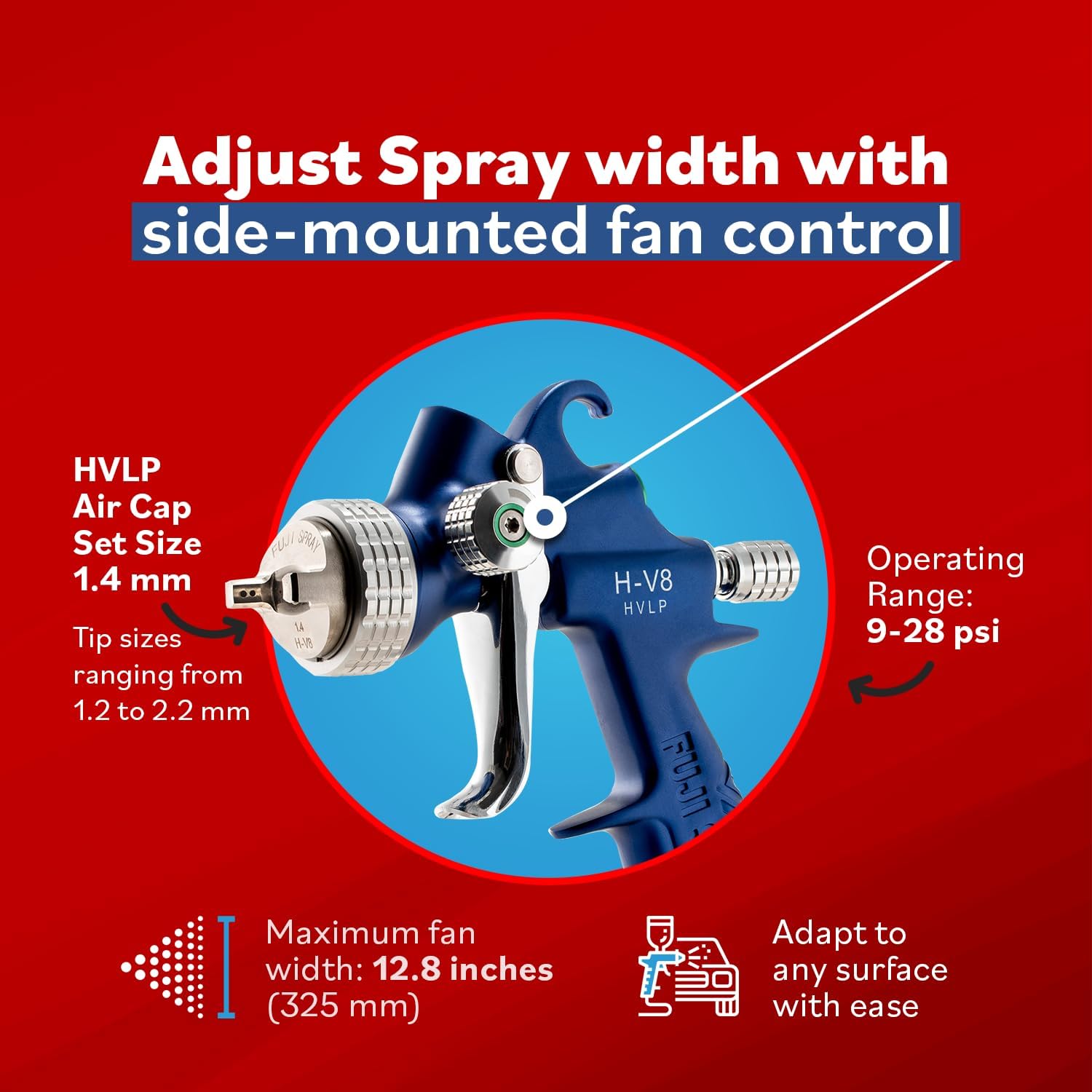

  • Side-mounted fan pattern control

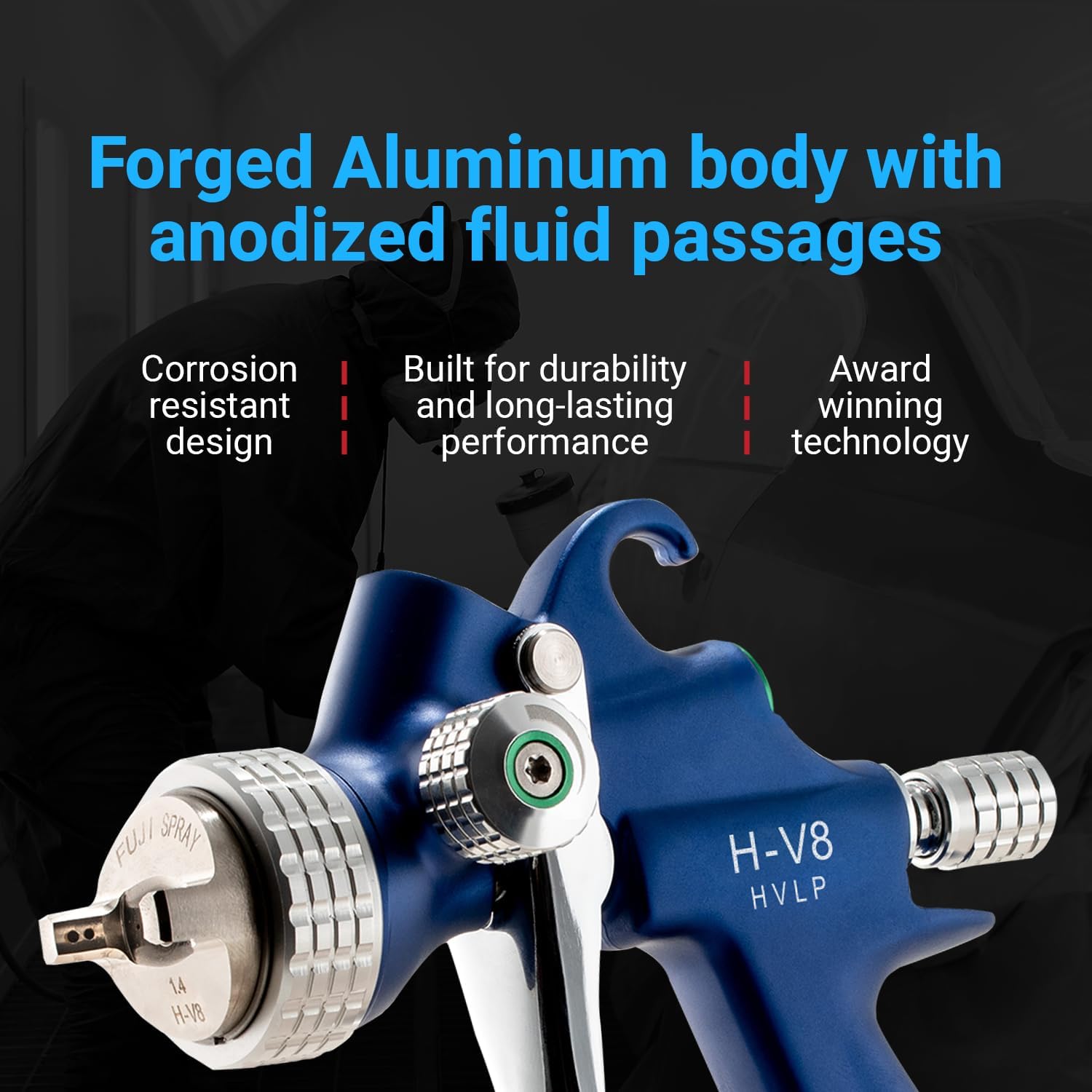

  • Forged aluminum gun body with anodized internals
  • For use with waterborne or solvent-based coatings in high production facilities
  • 360° swivel air inlet
  • Optimized HVLP air cap for soft spray pattern
  • Fewer internal components for easy maintenance
  • Tip sizes ranging from 1.2 to 2.2 mm


Air Cap Sets Available (in mm): 1.2; 1.3; 1.4; 1.7; 2.0; 2.2
Operating Range: 9-28 psi
Air Inlet Size: 1/4” BSP and NPS
Air Supply Hose: 6.5 x 10 mm
Air Consumption: 14.7 cfm
Fluid Coupler (Gravity): 3/8” PF
Standard Air Cap Set: 1.4 mm
Gun Weight (Without Cup): 521 g (18.38 oz)
Application Type: Waterborne and solvent-borne clear coat application
Max. Fan Width: 325 mm
