Rebuild Kits

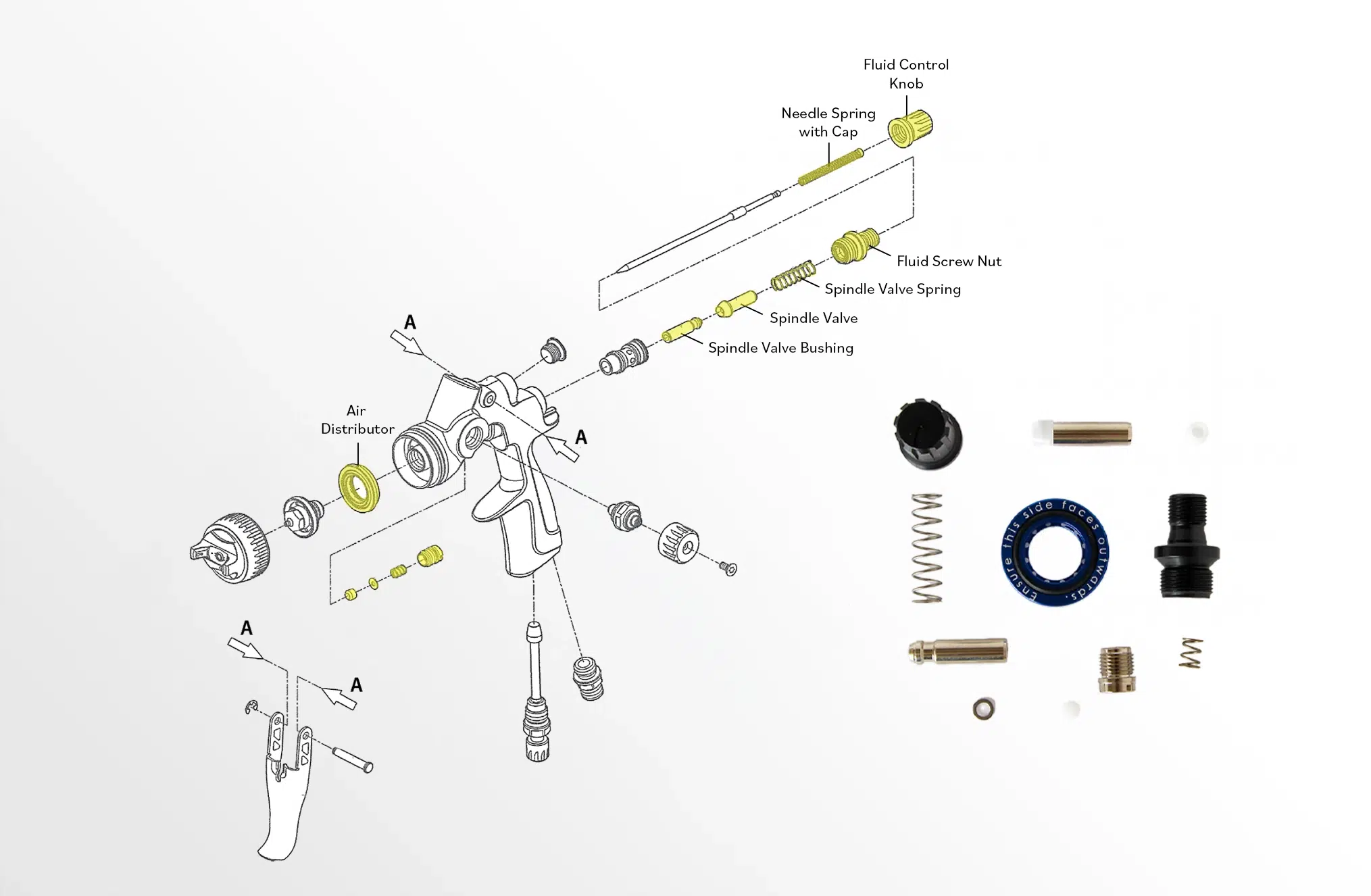

This rebuild kit includes:

#6803 – Air Distributor
#6808 – Spindle Valve Bushing
#6809 – Spindle Valve
#6810 – Spindle Valve Spring
#6811 – Fluid Screw Nut
#6813 – Needle Spring
#6814 – Needle Spring Cap
#6815 – Fluid Control Knob
#6821 – Needle Packing Assembly

Refer to #6882 when ordering

This rebuild kit includes:

#6303 – Air Distributor
#6306 – Needle Packing
#6307 – Needle Packing Nut
#6312 – Spindle Valve
#6313 – Valve Spring
#6314 – Fluid Screw Nut
#6316 – Needle Spring
#6317 – Fluid Control Knob

Refer to #6382 when ordering

This rebuild kit includes:

#6303 – Air Distributor
#6304 – Air Diffuser
#6305 – Air Diffuser Seal
#6306 – Needle Packing
#6307 – Needle Packing Nut
#6312 – Spindle Valve
#6313 – Valve Spring
#6314 – Fluid Screw Nut
#6316 – Needle Spring
#6317 – Fluid Control

Refer to #6282 when ordering

This rebuild kit includes:

#5201 Collar
#5202 Air Cap
#5203 Fluid Nozzle
#5204 Air Diffuser
#5205 Diffuser Seal
#5206 Air Divider Seal
#5207 Air Divider
#5208 Fluid Coupler (T-70)*
#5209 Needle Packing
#5210 Needle Packing Nut
#5211 Gravity Fluid Coupler (T-75)*
#5212 Fluid Coupler Seal*
#5213 Gun Body
#5214 Rotating Nipple Assembly
#5215 Nipple
#5216 Spindle Valve
#5217 Valve Spring
#5218 Fluid Screw Nut
#5219 Needle
#5220 Needle Spring
#5221 Fluid Adjusting Knob
#5222 Air Deflector
#5223 Deflector Seal
#5224 Control Knob Nut
#5225 Pattern Control Knob
#5226 Locking Screw
#5227 Handle tube*
#5228 Handle*
#5229 Hose Connector*
#5230 Retaining Ring
#5231 Trigger
#5232 Trigger Pin

Parts indicated with * are not removable.

This rebuild kit includes:

#6094 Blue-Collar Blue
#8007-2 Needle Packings (x2)
#8026 Spring – Spindle Valve
#8019 Needle Spring
#8029 Blue – Blue Fluid Knob
#8008 Needle Packing Nut
#8025-6 Spindle Valve Seal (x6)
#8030 Fluid Screw Nut Seal
